RGB Upgraded with the Official Tim Worthington NESRGB v5 Kit + Extras

Summary:
NTSC Frontloader WITH all the extras: nesrgb v5, cart fix, bucky with snes multi out, lockout chip disabled, cartridge expansion audio wired in, rgb and component out compatible.

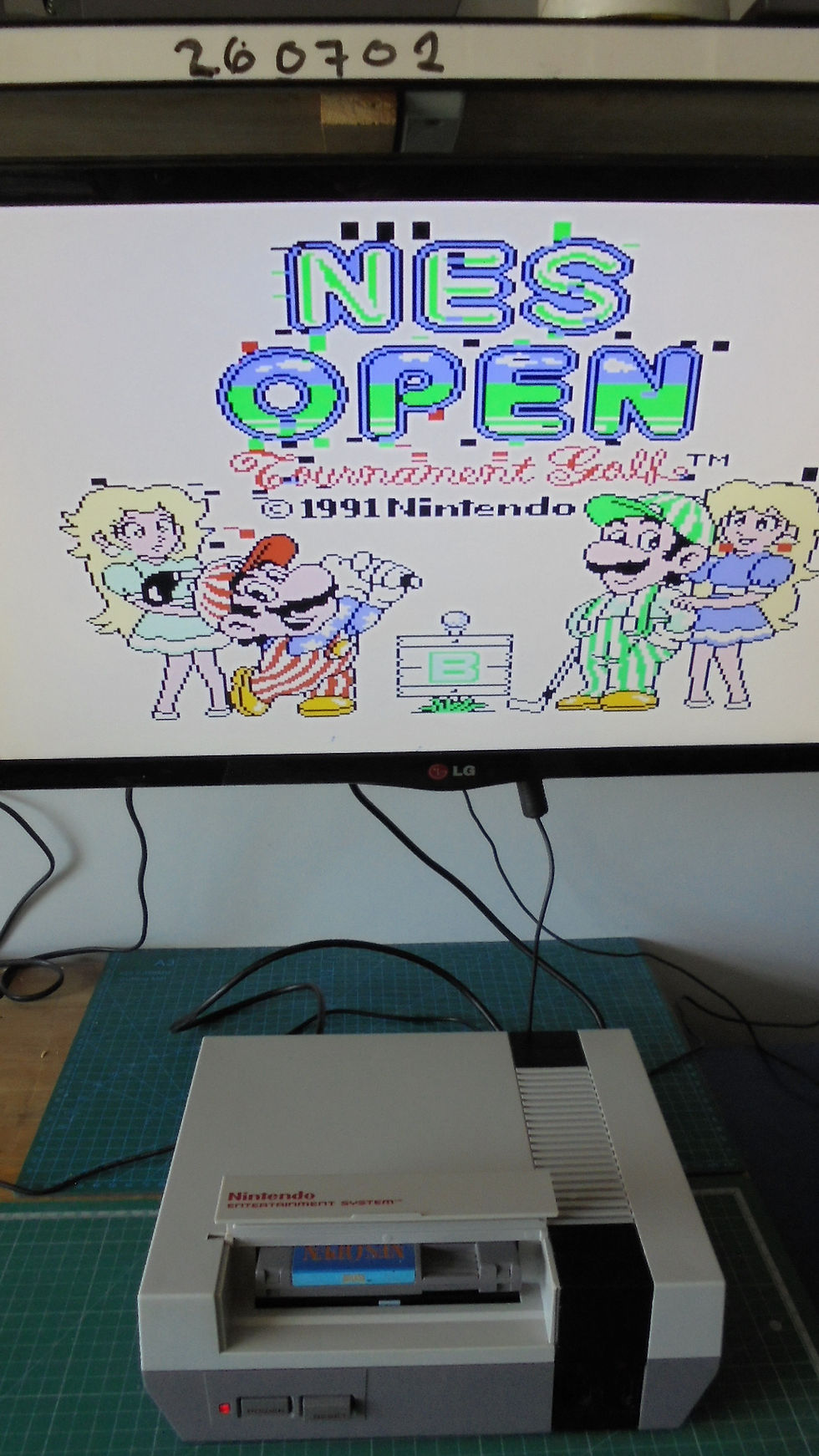

Photos showing the ready to ship console in very good cosmetic condition with no fading and only a single chip by the cartridge door. RGB Modded with  TW NESRGB v5 + Bucky Power Module and Cart Connector Fix. Thoroughly cleaned inside and out with the lockout chip disabled to run any region cartridge. Extra cartridge audio has been wired in, electrolytics on main board replaced as can be seen in photo. This should last another 40 years.

Fitted with Tim Worthington NESRGB V5

Official RGB mod by Tim Worthington outputting the clearest analogue signal possible, the difference is night and day compared to blurry composite, with crisp, clear graphics. Extra features include reset via controller, ideal for flash carts such as the everdrive N8 etc. and 6 Pallette options selectable by controller. Version 5 adds an on screen menu with extra video and audio options. This has been wired for RGB SNES NTSC Scarts

New NES Power / Output Module 'Bucky v1.4'

The old rf module is replaced with switched mode buck converter regular circuit. Almost twice as power efficient as the old 7805 linear circuit. Generates a lot less heat with no need for a heatsink. Integrated RGB output connector for use with NTSC SNES RGB scart and HDMI using upscalers such as the ossc, rad2x, retrotink etc.

Cartridge Connector Fix

Direct replacement for flawed bendy frontloader cartridge connector. This has a standard connector and should fix any connection issues notorious with the original, the connector sits further forward so no need to push the tray down!

Scart and power supply sold seperetely.

Any questions, david@oldskoolconsoles.com
